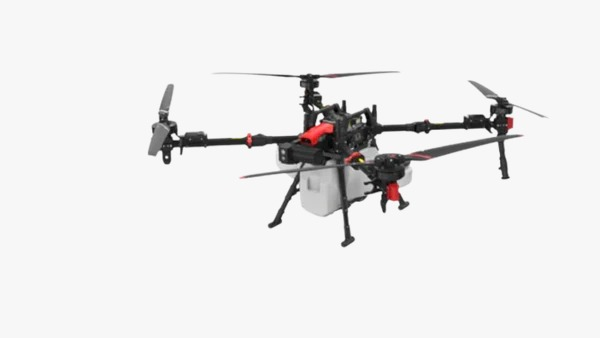

XAG P150 DRONE

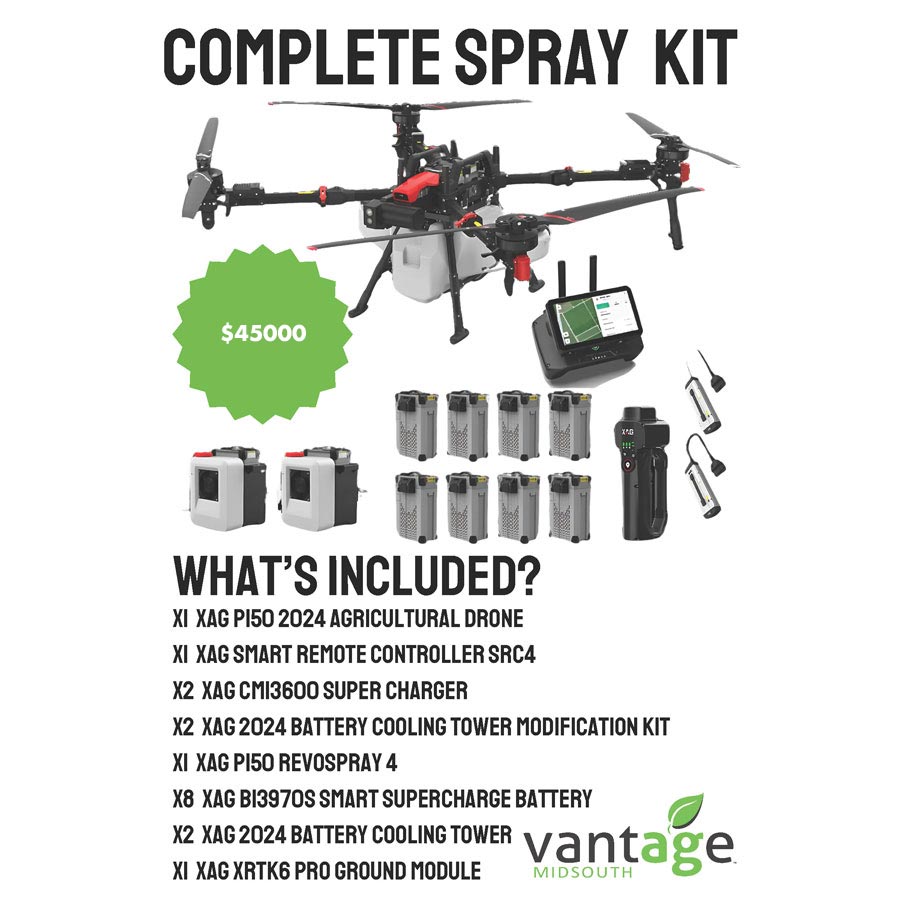

2024 PRICING 45000.00 FOR THE COMPLETE SPRAY KIT
Introducing the XAG P150 2024 Agricultural Drone – a game-changer in modern farming. Engineered for versatility and efficiency, this advanced drone is built to enhance agricultural productivity with four primary functions: spraying, spreading, transportation, and aerial surveying. With an impressive maximum payload capacity of 143 LBS, the P150 combines power and practicality. Its intelligent control system and user-friendly operation make it an economical and flexible solution for streamlining farm operations. Elevate your farming efficiency with the XAG P150 – the future of precision agriculture.
DETAILS
- 18.5 GALLON LIQUID TANK
- 30.4 SPREAD TANK
- MAX FLOW RATE 7.9 GALLONS
- MULTIPLE CONTROL OPTIONS - SINGLE OR DUAL HANDED REMOTE AND APP FUNCTIONS
- 8 MINUTE RAPID CHARGING
- 16.4-32.8 FEET SPRAY SWATH
- 60-400 MICRONS DROPLET SIZE
- ADVANCED IMPELLER PUMP - FLEXIBLE AND DURABLE
- FULL SPEED OBSTACLE AVOIDANCE - LANDING AND TAKE OFF
- NEW FRAME
- FLEXIBLE CARRY OPTIONS- MAXIMUM LOAD OF 143 LBS
- 60 INCH PROPELLER

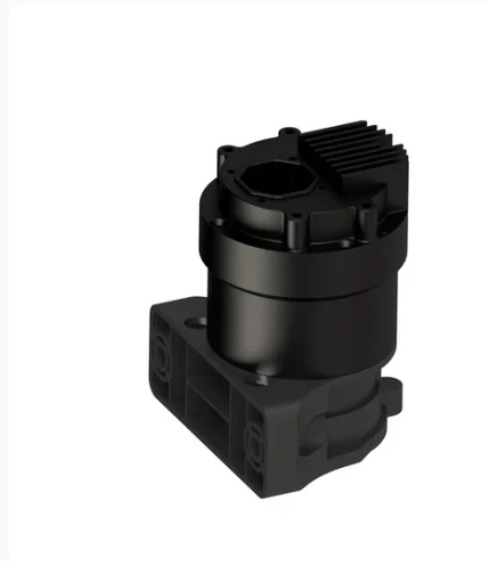

Flexible Impeller Pump
- Max. Flow Rate: 30 L/min
- Spraying Efficiency: Open Field | 26 ha/h1
- Max. Payload: 70 kg 2
- Max. Flight Speed 18 m/s 3
- Max. Spread Rate: 280 kg/min
- Spreading Efficiency: Fertilizing | 2167 kg
The P150 takes automation to the next level by autonomously capturing high-resolution images, stitching them together seamlessly, and generating real-time 3D models. Designed for efficiency, it excels in high-definition mapping for fields and orchards, covering up to 32 acres in a single mission. Simplify your surveying tasks with the P150’s cutting-edge technology.
Call Us
Details
Nozzles
The Centrifugal Atomizing Nozzle comes with a quantity of two. It operates with a spray disc rotational speed ranging from 1500 to 16000 RPM. The nozzle produces atomized droplet sizes between 60 and 500 micrometers, depending on the actual operating environment, spray flow, and other influencing factors. The spray width varies from 5 to 10 meters, which is subject to flight height, dosage, environmental conditions, and similar parameters.
Camera
The camera module features a resolution of 1920 × 1080 pixels and operates at a voltage of 24 V. It supports a frame rate of 30 frames per second (fps) and utilizes H.264 / H.265 encoding formats for efficient video compression. Equipped with a 1/2.8-inch CMOS RGB image sensor delivering 2 megapixels of effective resolution, the system provides high-quality imaging performance. The focal length is 2.7 mm for both the forward FPV and downward FPV cameras, ensuring clear and wide-angle visual coverage for real-time monitoring.
Sensor
The Model RD2488 sensor operates on a 24 V power supply and consumes 10 W of power. It features a sensing range from 1.5 to 100 meters and utilizes beamforming and 4D imaging sensing modes. The sensor offers a field of view (FOV) of ±40° horizontally and +90° to -45° vertically. It can detect an obstacle at a relative height of at least 1.5 meters and provides a distance of obstacle avoidance of 2.5 meters, measured from the propeller tip to the obstacle when the drone brakes and hovers steadily. The system supports a relative obstacle avoidance speed of up to 13.8 m/s, while its sensing parameters include the obstacle’s position, distance, motion direction, and relative velocity.
Fold Design
When equipped with the XAG RevoCast System, the P150 can spread a 50-kilogram bag of fertilizer in just 11 seconds. 11It excels in high-precision spreading tasks and brings exceptional efficiency.
Spread
The XAG Pl00 Pro uses an auger-based spreading system to handle granular materials such as seeds, fertilizers, and pesticides. This system is designed for precision, durability, and efficiency in agricultural spreading tasks.
The spreading system achieves a spreading width of up to 10 meters (32.8 feet), enabling coverage of large fields in less time.
The wide spreading range increases operational efficiency and reduces labor costs.
The variable-speed spreading disk ensures uniform and precise distribution of granules, seeds, or fertilizers. The spreading disk is designed for anti-clogging, ensuring smooth operation even with materials of varying sizes and textures.he spreading system is modular and easy to install or detach, allowing seamless switching between spraying and spreading modes.
Designed for durability, the spreading components are resistant to wear and tear, ensuring long-lasting performance.
Details
Pumps
The system includes two pumps, each operating at a voltage of 50 V. It supports a maximum operating flow rate of 30.0 L/min when both pumps function simultaneously, while a single pump can achieve a maximum flow rate ranging from 0.5 to 15.0 L/min. This configuration ensures efficient and flexible fluid delivery for various operational requirements.
Batteries
The Model M1PPA13970BH is a lithium-ion polymer battery designed for high-performance applications. It delivers a rated output of 48.75 V and 140 A, providing reliable power for demanding operations. The battery has a rated capacity of 20,000 mAh and supports a maximum charging current of 100 A. It operates efficiently within a charging ambient temperature range of 10°C to 45°C, ensuring stable performance and long service life under optimal environmental conditions.
7 quick attach Brackets
The Quick Attach Brackets on the XAG Pl00 Pro are a key feature that underscores the drone's commitment to versatility and efficiency. By simplifying the transition between different agricultural applications, they help farmers save time, reduce labor, and maximize productivity.These brackets are designed to enhance operational efficiency and versatility, allowing users to switch between tasks seamlessly.
