XAG P100 Pro Agricultural Drone

Nozzles

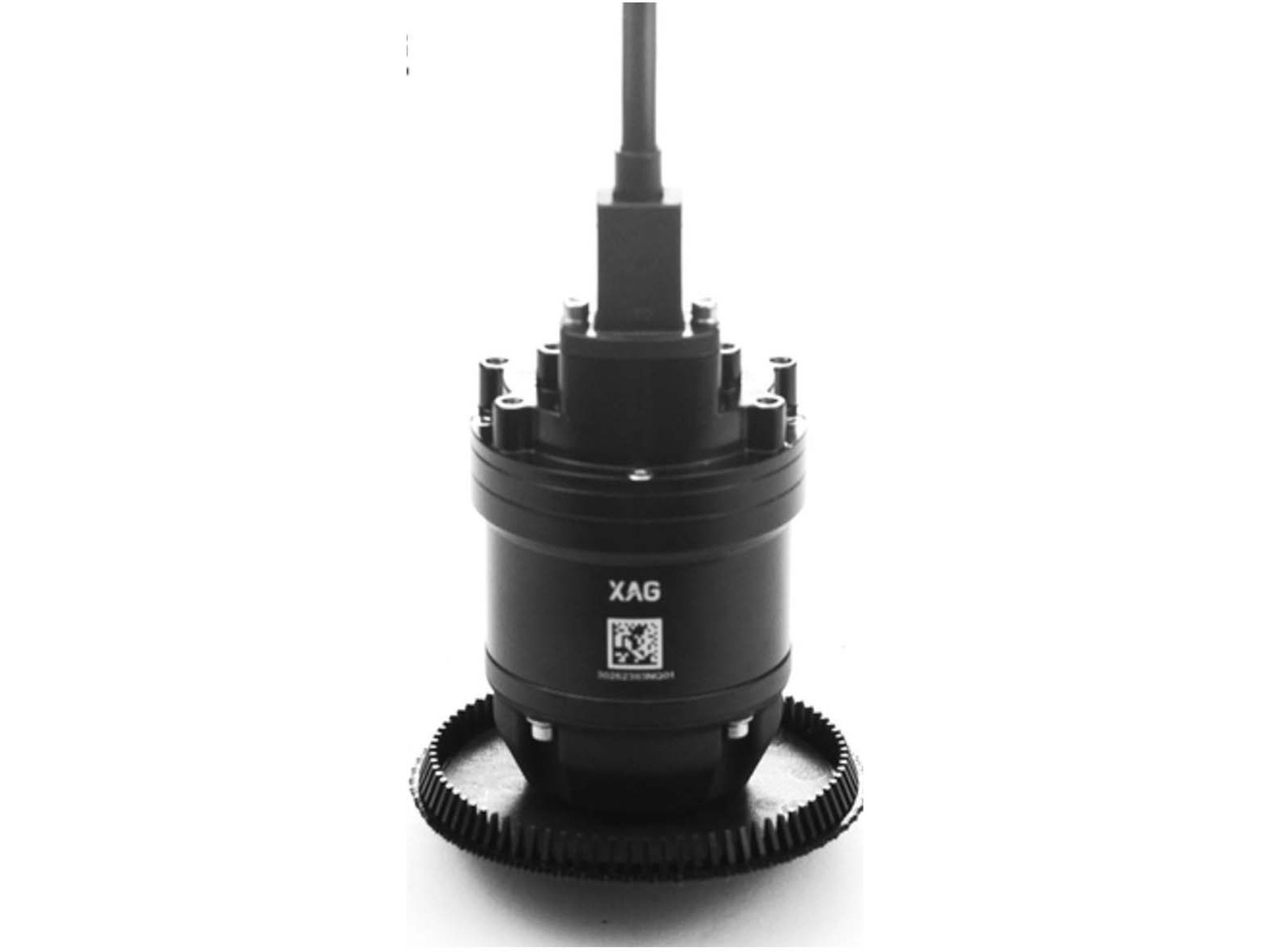

The Pl00 Pro is equipped with two centrifugal atomizing nozzles, which ensure uniform distribution of liquid during spraying.These nozzles are designed to operate at a disc speed of 1,000 to 16,000 RPM, allowing flexibility in droplet size and spray coverage.The nozzles produce droplet sizes ranging from 60 to 400 microns, depending on factors like spray flow, environmental conditions, and speed.This range ensures the flexibility to adapt to different spraying needs, from fine mists to larger droplets, minimizing waste and maximizing efficiency.The nozzles can achieve a spray width of 5 to 10 meters, depending on flight speed, altitude, and application needs.This wide coverage allows for efficient treatment of larger areas in less time.

Pumps

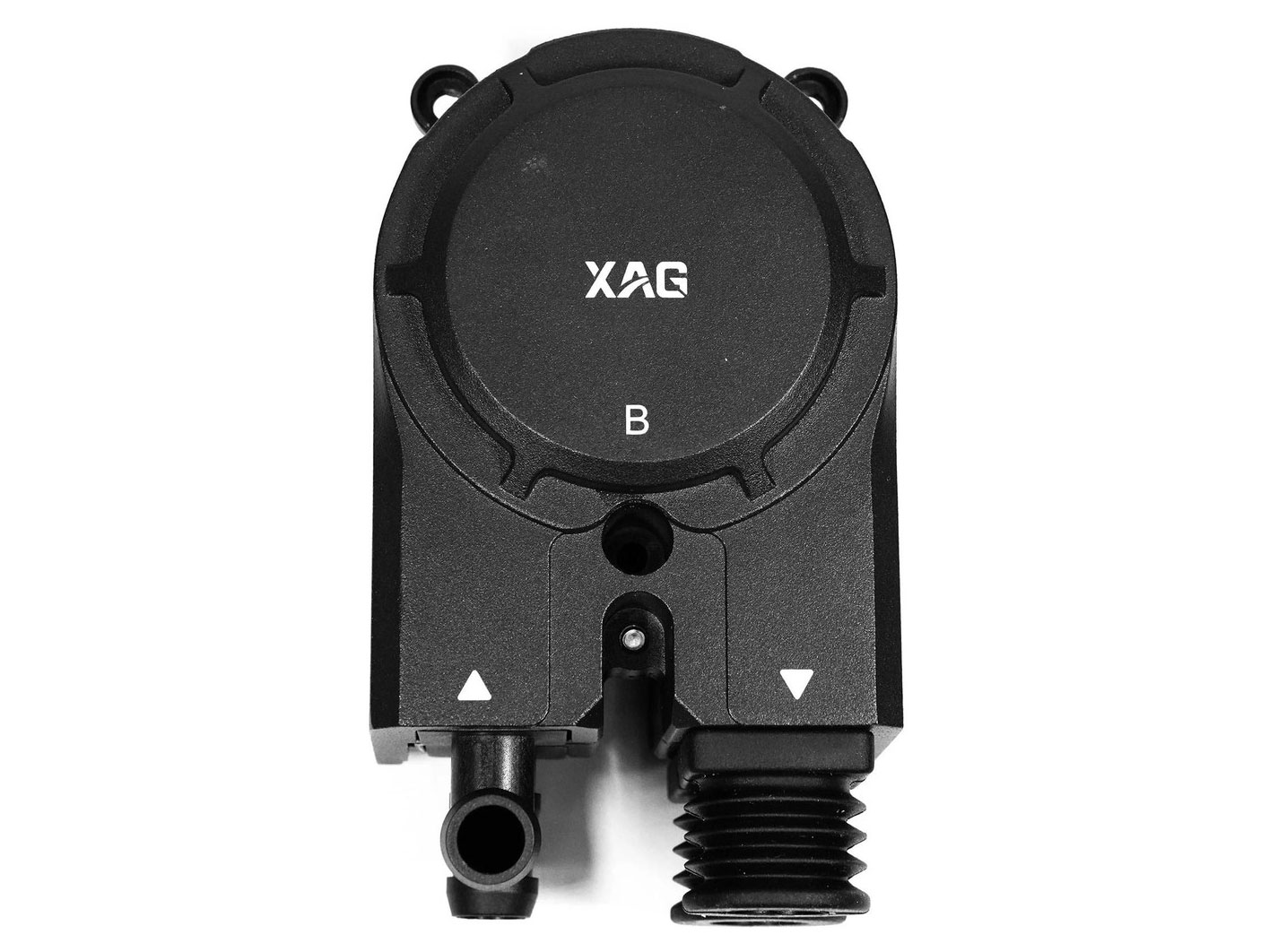

Equipped with a highly efficient spray system powered by high-frequency pulse peristaltic pumps.These pumps ensure precise and consistent liquid flow for spraying. MAXIUM flow of 5.8 gallons per minute. These pumps ensure precise and consistent liquid flow for spraying applications.The pumps work in tandem with centrifugal atomizing nozzles, allowing for fine control over droplet size (ranging from 60 to 400 microns), ensuring uniform application and reducing waste.

Camera

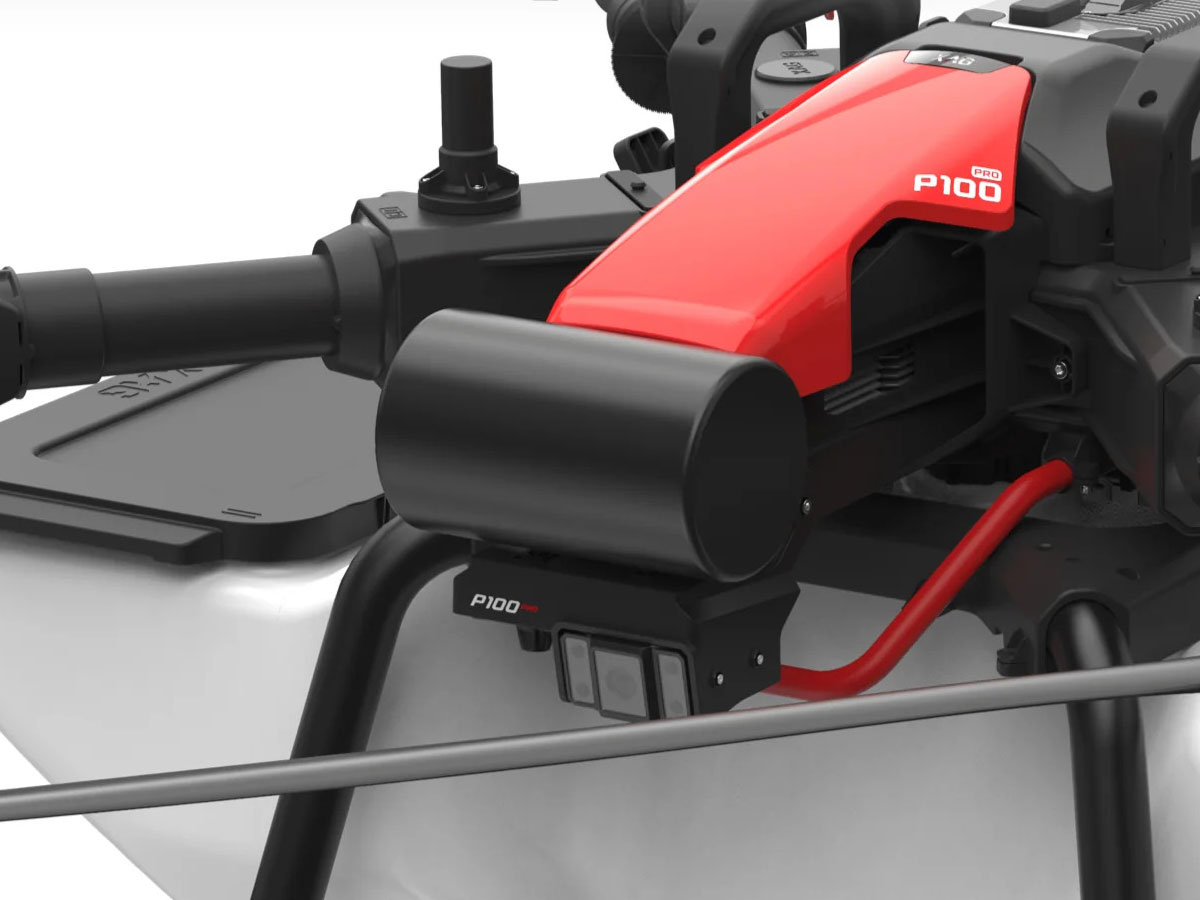

Equipped with a 12-megapixel camera and a mechanical shutter, this drone ensures precise imaging capabilities for field assessments and monitoring. The camera supports JPEG image format, making it ideal for capturing high-resolution agricultural data.

Sensor

The XAG Pl00 Pro is fitted with terrain-following radar that detects changes in field topography and automatically adjusts the drone's flight altitude.Provides centimeter-level positioning accuracy, ensuring precise route planning and effective spray application.

4D Obstacle Avoidance:Enhances safety and efficiency by detecting and avoiding obstacles such as trees, powerlines, and buildings.

It can fly up to 400 feet and down to 5 feet above the ground.

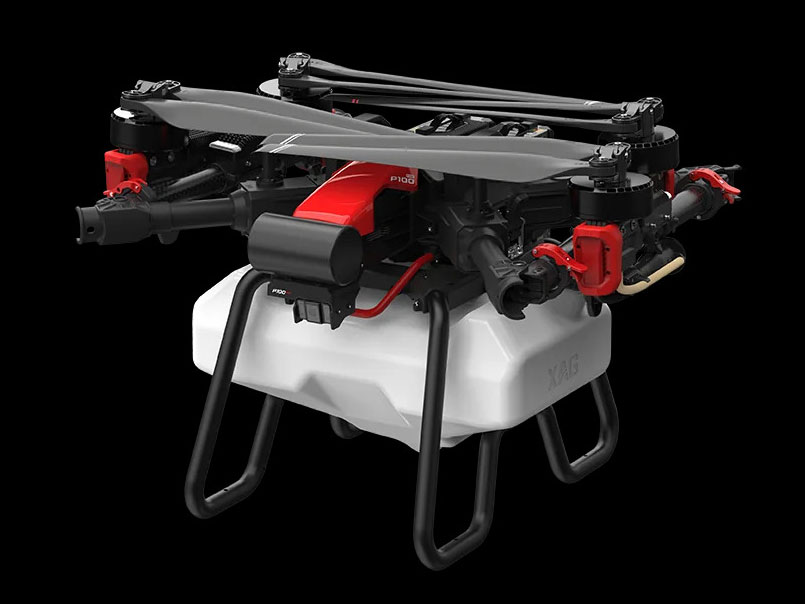

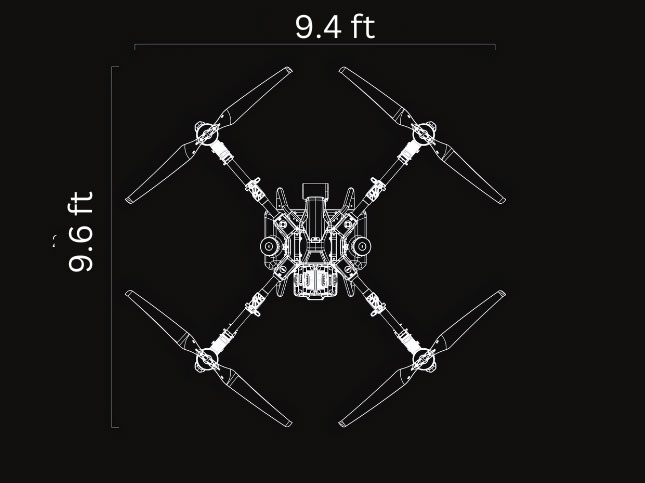

Fold Design

Efficient Storage: Save space when the drone is not in use, whether it's on a shelf, in a vehicle, or in a warehouse.

Improved Portability: The ability to fold the drone makes it easier to take it between fields, reducing the effort and time spent on transportation.

Faster Deployment: A quick and easy setup process allows farmers to focus more on operations rather than spending time assembling or storing the drone.

Batteries

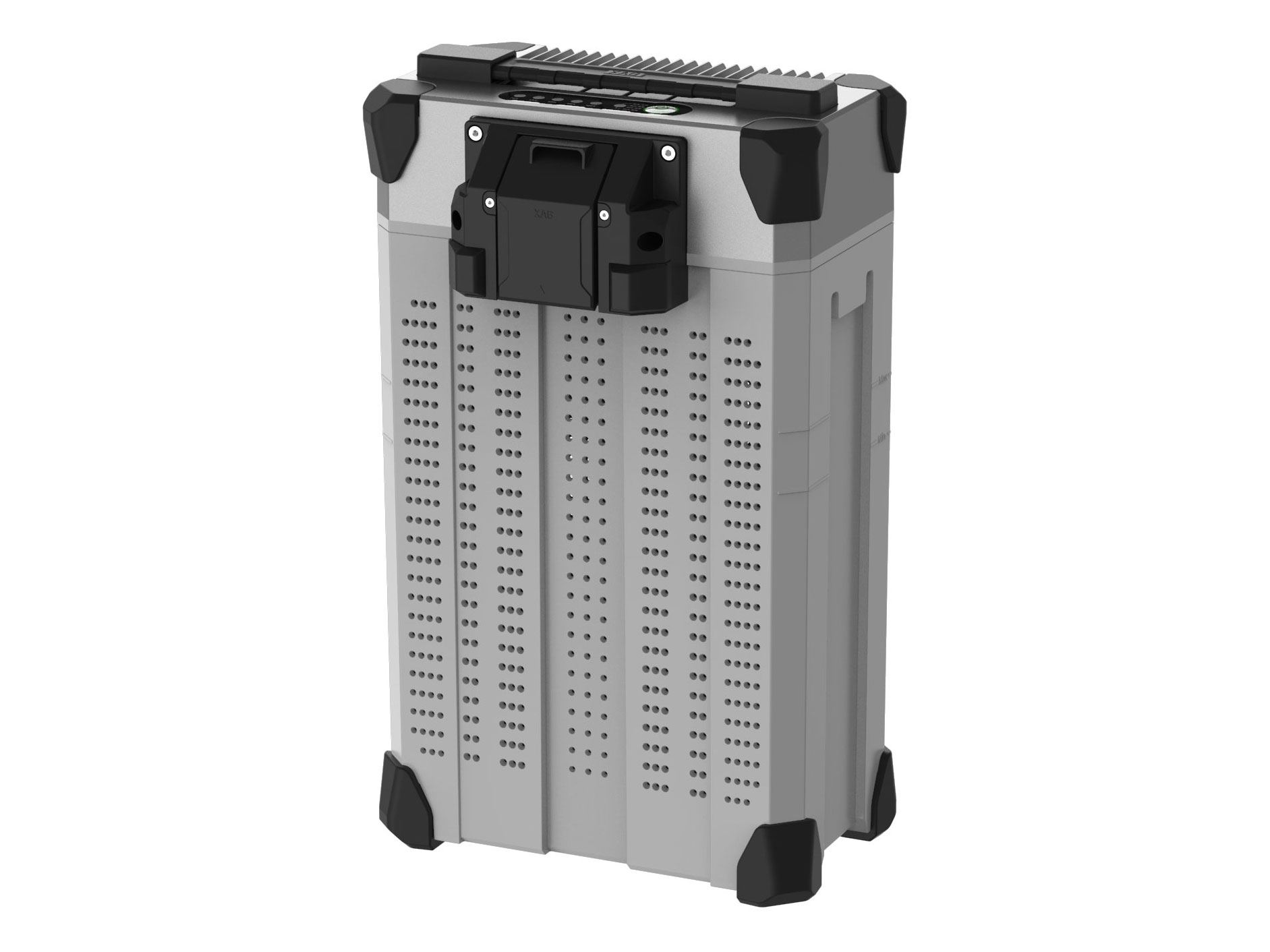

The XAG Pl00 Pro drone is powered by advanced B13960S Smart Batteries, which are designed for efficiency, safety, and high performance in agricultural applications. Here are the key features:

High Capacity: Each battery has a 960 Wh capacity, allowing the drone to operate for extended periods, making it ideal for large-scale farming operations.

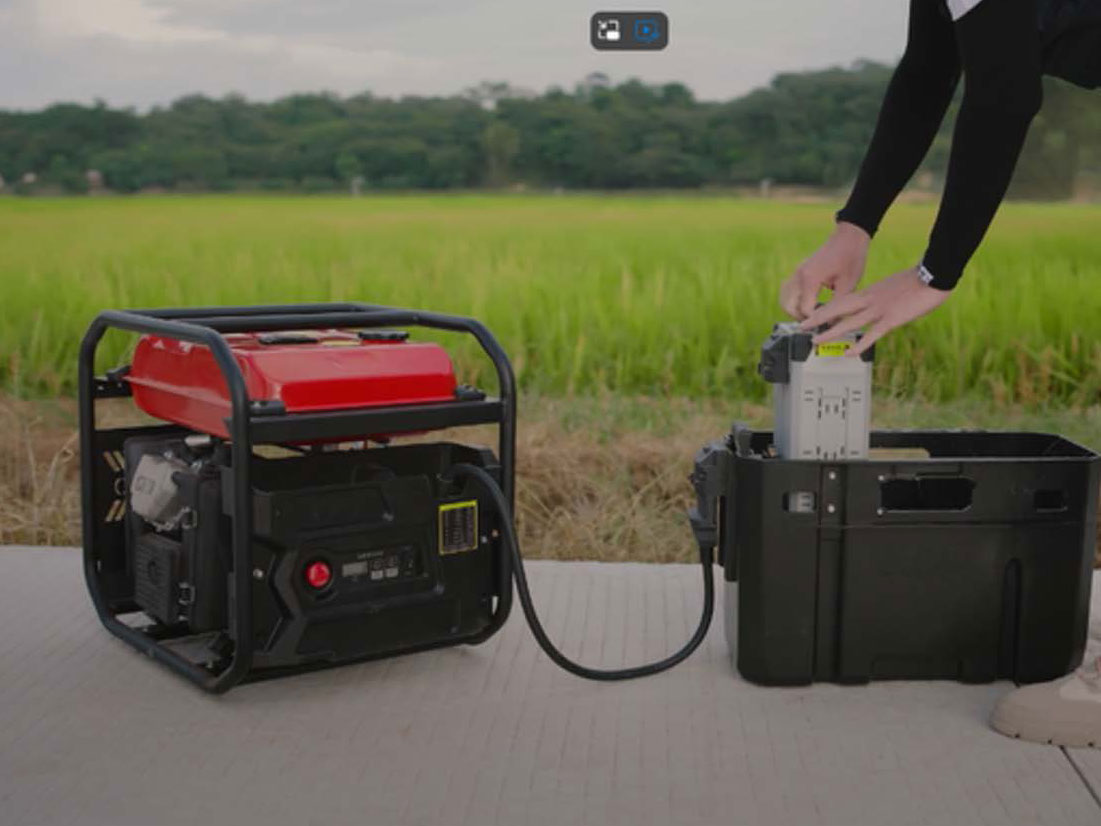

Rapid Charging: Utilizing a water-cooling system, the batteries can be fully charged in just 11 minutes.

Smart Battery Management: The XBMS Intelligent Battery Management System enhances safety and extends the battery's life.

Durable Design: The batteries are built with heat-resistant materials and equipped with temperature sensors to maintain reliability and safety during high-demand operations.

These batteries ensure the XAG Pl00 Pro operates efficiently with minimal downtime, making it a valuable tool for precision agriculture and high-demand environments

Spread

The XAG Pl00 Pro uses an auger-based spreading system to handle granular materials such as seeds, fertilizers, and pesticides. This system is designed for precision, durability, and efficiency in agricultural spreading tasks.

The spreading system achieves a spreading width of up to 10 meters (32.8 feet), enabling coverage of large fields in less time.

The wide spreading range increases operational efficiency and reduces labor costs.

The variable-speed spreading disk ensures uniform and precise distribution of granules, seeds, or fertilizers. The spreading disk is designed for anti-clogging, ensuring smooth operation even with materials of varying sizes and textures.he spreading system is modular and easy to install or detach, allowing seamless switching between spraying and spreading modes.

Designed for durability, the spreading components are resistant to wear and tear, ensuring long-lasting performance.

7 quick attach Brackets

The Quick Attach Brackets on the XAG Pl00 Pro are a key feature that underscores the drone's commitment to versatility and efficiency. By simplifying the transition between different agricultural applications, they help farmers save time, reduce labor, and maximize productivity.These brackets are designed to enhance operational efficiency and versatility, allowing users to switch between tasks seamlessly.
